| مو: | 1 وحدة |
| السعر: | Negotation |
| العبوة القياسية: | معبأة بحالة خشبية |
| طريقة الدفع: | T/T ، Western Union |
| سعة العرض: | 1000 وحدة في الشهر |
Description:
Ultrasonic functional coating of semiconductor glass protective film is a high-tech material commonly used to improve the wear resistance, stain resistance, and reflectivity of glass surfaces. The ultrasonic functional coating of semiconductor glass protective film forms a uniform and compact film layer on the substrate surface through ultrasonic vibration, which not only improves light transmittance, reduces reflection, and enhances visual effects, but also enhances the scratch resistance of the glass, prolongs its service life, and reduces the adhesion of dirt and fingerprints, making it easy to clean.
Parameters:
| Product Type |
Ultrasonic Precision Spray Coating Machine Laboratory desktop Type FS310 |
Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |

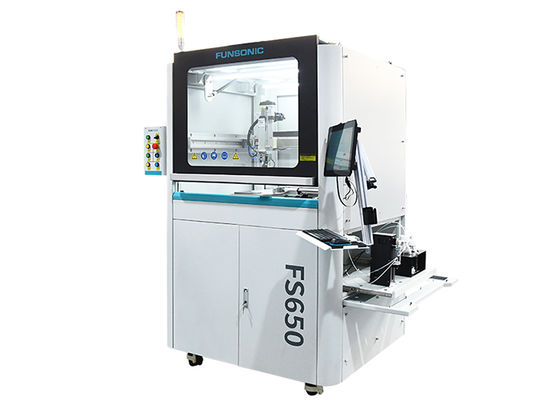

Benchtop Ultrasonic Spray Coating Machine FS650 |
| Spray Nozzle Operating Frequency | 20-200KHz | 20-200KHz (Normally use 60100110120K) | 20-200KHz (Normally use 60100K) |
| Nozzle Power | 1-15W | 1-15W | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min | 0.01-50ml/min | Determine based on the type and quantity of nozzles configured (Max 5 Nozzles) |
| Effective Spraying Width | 2-100mm | 2-100mm | Determine based on the type and quantity of nozzles configured |
| Spray Uniformity | ≥95% | ≥95% | ≥95% |
| Solution Conversion Rate | ≥95% | ≥95% | ≥95% |
| Dry Film Thickness | 20nm-100μm | 20nm-100μm | 20nm-100μm |
| Solution Viscosity | ≤30cps | ≤30cps | ≤30cps |
| Temperature Range | 1-60℃ | 1-60℃ | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle | 10-45μm (distilled water), determined by the frequency of the nozzle | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.10MPA | ≤0.15MPA | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz | 220V±10%/50-60Hz | 220V±10%/50-60Hz |
| Exercise Mode | X+Y two axis fully automatic, Z-axis manual adjustment | XYZ three-axis, independently programmable | A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module |
| Control Mode | Micro computer card, 7-inch touch screen+buttons | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen | PLC control, operation control system developed based on Windows system, supporting remote operation, upgrading, etc |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems | The touch screen integrates ultrasonic nozzle, liquid supply, heating, adsorption, ultrasonic dispersion and other controls, and also has system monitoring, alarm and other functions |
| Liquid Supply Method | Precision injection pump | Precision injection pump | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 50ml, 40K, biological grade sampler | 20ml or 50ml, 40K, biological grade sampler | 20ml or 50ml, 40K, biological grade sampler |
Precautions:
1. Material selection
Coating material: Select high-quality resins and additives to ensure the wear resistance and adhesion of the coating.
Solvent compatibility: Ensure that the solvent used is compatible with the coating material to prevent coating failure.
2. Surface treatment
Cleanliness: The glass surface must be completely clean, removing dust, oil stains, and other impurities to ensure good adhesion.
Surface roughness: Proper surface treatment can increase coating adhesion and prevent coating peeling.
3. Ultrasonic parameters
Frequency and power: Adjust the frequency and power of the ultrasonic spraying equipment to achieve the best spraying effect.
Spray angle and distance: Control the spray angle and distance to ensure even distribution of the coating.
4. Drying and curing
Temperature and Time: Strictly control the temperature and time of drying and curing to ensure complete curing of the coating.
Avoid contamination: During the drying and curing process, avoid external contaminants from contacting the coating.
