| مو: | 1 وحدة |
| السعر: | Negotation |
| العبوة القياسية: | معبأة من قبل الكرتون |
| طريقة الدفع: | / تي تي، ويسترن يونيون |
| سعة العرض: | 1000 وحدة في الشهر |
Description:

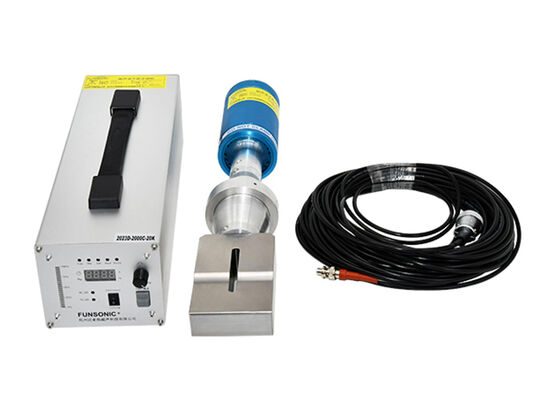

Ultrasound Planar Indium Spray Coating Uniformly Atomize 2000w utilizes high-frequency ultrasonic vibration to uniformly atomize, spray or coat molten indium on the surface of a planar substrate. The device achieves ideal coating effects by adjusting the main parameters such as nozzle amplitude, scanning speed, and indium material flow rate.
Ultrasound Planar Indium Spray Coating Uniformly Atomize 2000w machines are mainly used in fields such as flat display panels, solar cells, LED chips, etc. By using ultrasonic indium coating technology, thinner and more uniform indium layers are obtained, greatly reducing the use of indium and providing these products with a conductive and reflective indium layer.
Parameters:
| Product Type | Planar Indium Coating | Inner Hole Indium Coating | Outer Circle Coated with Indium | |
| Rated Power | 100-1000W | 500-2500W | 300-1500W | |
| Frequency | 20,28,30KHz | 20KHz | 20KHZ | |
| Temperature Range | 150-400℃ | |||
| Working Amplitude | 3-20μm | 3-15μm | 3-20μm | |
| Input Voltage | 220V± 10%,50/60Hz,4A | 220V± 10%,50/60Hz,8A | 220V± 10%,50/60Hz,6A | |
| Indium Coated Head Material | Titanium Alloy (other materials can be customized) | |||
| Working Mode | Intermittent/Continuous switchable | |||
| Control Mode | Manual Button or External Control | |||
| Composition Accessories | Ultrasonic Generator,Transducer, Specialized Amplitude Lever, Indium Coated Head, Shell, etc | |||
| Ultrasonic Generator | Size | 180*120*360mm | ||
| Weight | 5kg | |||
| Characteristic | Fully digital frequency tracking system, temperature automatic adjustment system, capable of working 24 hours a day | |||
| Vibration Head Size | Φ16cap shaped round head,50*10mmsquare head | 50*30mm(inner diameter of curved fitting pipe) | 80*20mm (outer diameter of curved fitting pipe) | |
| Processable Materials | ITO glass, aluminum, molybdenum, copper, indium, etc | |||
| Application Direction | Flat, inner hole, outer circle, etc | |||
Technical Specifications AndPerformance Parameters :
1. Production efficiency:
The traditional coating pace is 0.5-2 rectangular meters per minute, which varies relying on the product measurement and coating thickness.
The manufacturing capability of a single system can attain 500-2000 rectangular meters per hour, which is very beneficial for enhancing manufacturing efficiency.
2. Coating quality:
It can reap a uniform coating thickness of 0.1-2 μ m, some distance most fulfilling to common coating methods.
The uniformity and continuity of the coating are excellent, assembly the necessities of high-end digital products.
3. Equipment cost-effectiveness:
Compared to regular chemical indium plating processes, ultrasonic indium coating machines can considerably limit the consumption of indium and retailer costs.
The funding price of the tools itself is high, however the long-term running fee is low, and the funding return length is commonly 1-2 years.
High yield fee can appreciably decrease the scrap charge and remodel fee in the manufacturing process.
4. Other parameters:
The dimension of the substrate that can be processed is typically between 300mm x 400mm and 1200mm x 1500mm.
Suitable for a number substrate substances such as glass, metal, ceramics, etc.
The tools has a small footprint and is effortless to combine into present manufacturing lines.
|
|
